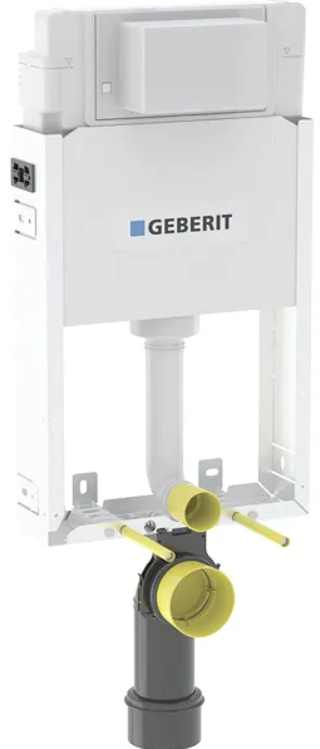

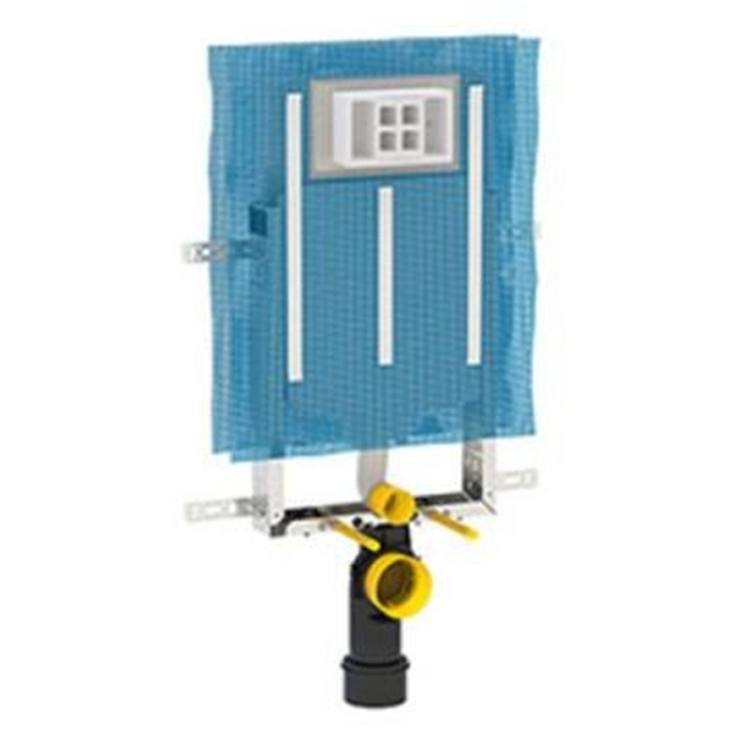

Geberit Alpha Kombifix Concealed Cistern 106 / 12 cm 110.238.00.2

Manufacturer: Geberit

Manufacturer part number: 110.238.00.1

R2 298,00 incl VAT

The Alpha Cistern used to go under the code: 110.179.00.1 which was replaced with 110.238.00.1 and subsequently 110.238.00.2

This is used for Wall Mounting Applications into a Brick Wall (Wall Hung Pan)

Technical data

Flow pressure	0.1-10 bar
Flush volume, factory setting	6 and 3 l
Flush volume large, adjustment range	4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2-4 l

Application purposes

For masonry walls

For installation in part or room-height prewall installations

For wall-hung WCs with connection dimensions in accordance with EN 33:2011

For dual flush

Characteristics

Click on a characteristic to search more products

Zinc-plated mounting frameMounting frame with four fastening brackets

Connection bend can be mounted without tools

Fastening for connection bend can be mounted without tools from front

Concealed cistern with front actuation

Concealed cistern, fully insulated against condensation

Immediate post flush possible with factory setting

Water supply connection on the rear or top centre

Water supply connection, dezincification-resistant

Protection cover box for service opening protects against moisture and dirt

Protection box for service opening can be cut to length

Scope of delivery

Angle stop valve R 1/2", compatible with MF, with adapter ring
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm

Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material

The Alpha Cistern used to go under the code: 110.179.00.1 which was replaced with 110.238.00.1 and subsequently 110.238.00.2

This is used for Wall Mounting Applications into a Brick Wall (Wall Hung Pan)

Technical data

Flow pressure	0.1-10 bar
Flush volume, factory setting	6 and 3 l
Flush volume large, adjustment range	4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2-4 l

Application purposes

For masonry walls

For installation in part or room-height prewall installations

For wall-hung WCs with connection dimensions in accordance with EN 33:2011

For dual flush

Characteristics

Click on a characteristic to search more products

Zinc-plated mounting frameMounting frame with four fastening brackets

Connection bend can be mounted without tools

Fastening for connection bend can be mounted without tools from front

Concealed cistern with front actuation

Concealed cistern, fully insulated against condensation

Immediate post flush possible with factory setting

Water supply connection on the rear or top centre

Water supply connection, dezincification-resistant

Protection cover box for service opening protects against moisture and dirt

Protection box for service opening can be cut to length

Scope of delivery

Angle stop valve R 1/2", compatible with MF, with adapter ring
Protection box for service opening
Connection set for WC, ø 90 mm
Connection bend made of PE-HD, ø 90 mm

Adapter socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
2 threaded rods M12
Fastening material

Products specifications

Attribute name	Attribute value
Water Capacity	150 Litres
Operating Pressure	up to 400 kPa
Element Rating	3 kW
Product Weight	39 kg
Product Length	1320 mm
Product Width	543 mm
Distance Between Mounting Brackets	865 mm
Delivery Surcharge	R 500.00
